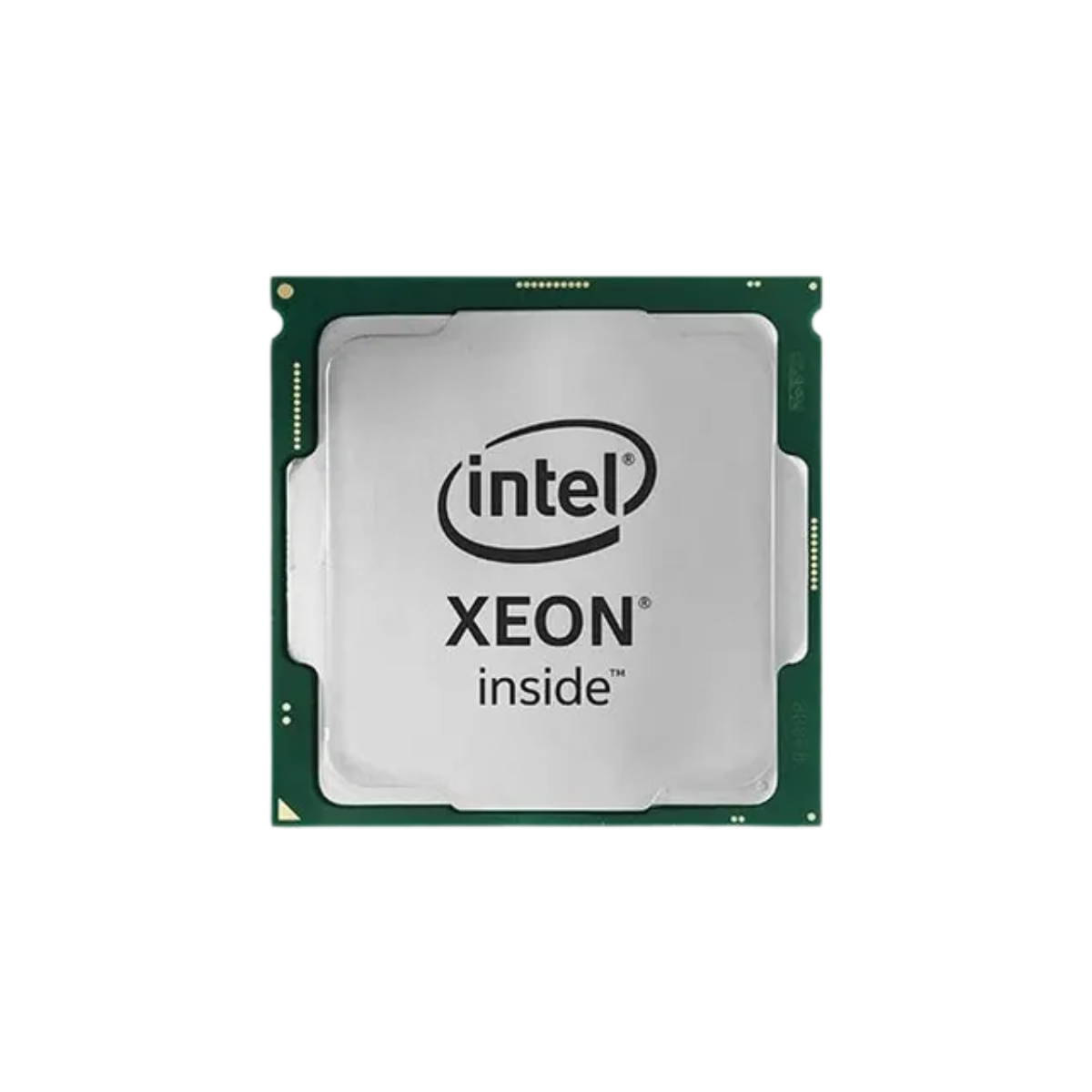

The Intel Xeon E‑2434 is a 4‑core, 8‑thread Xeon E‑2400‑series processor based on the Raptor Lake architecture and built on a 10 nm “Intel 7” process for single‑socket LGA1700 servers and workstations. It runs at a 3.40 GHz base frequency with Intel Turbo Boost up to 5.00 GHz, has 12 MB of shared L3 cache, a 16 GT/s bus, and a 55 W TDP, targeting small business servers and entry workstations that require strong single‑thread performance with modest core counts.
For memory‑intensive and I/O‑sensitive use cases, the Xeon E‑2434 supports up to 128 GB of DDR5‑4800 ECC memory across 2 channels and provides up to 20 PCIe 5.0 lanes, enabling high‑speed NVMe storage and modern NICs in compact 1U or tower platforms. Its support for Intel VT‑x, VT‑d, and EPT virtualization plus security features such as Intel AES‑NI, Intel Trusted Execution Technology, and Mode‑based Execute Control make the 3.4 GHz, 4‑core, 55 W FIO configuration a good fit in HPE ProLiant DL20/ML30 Gen11 servers for roles like domain controllers, file/print, web, and light database or virtualization workloads.
