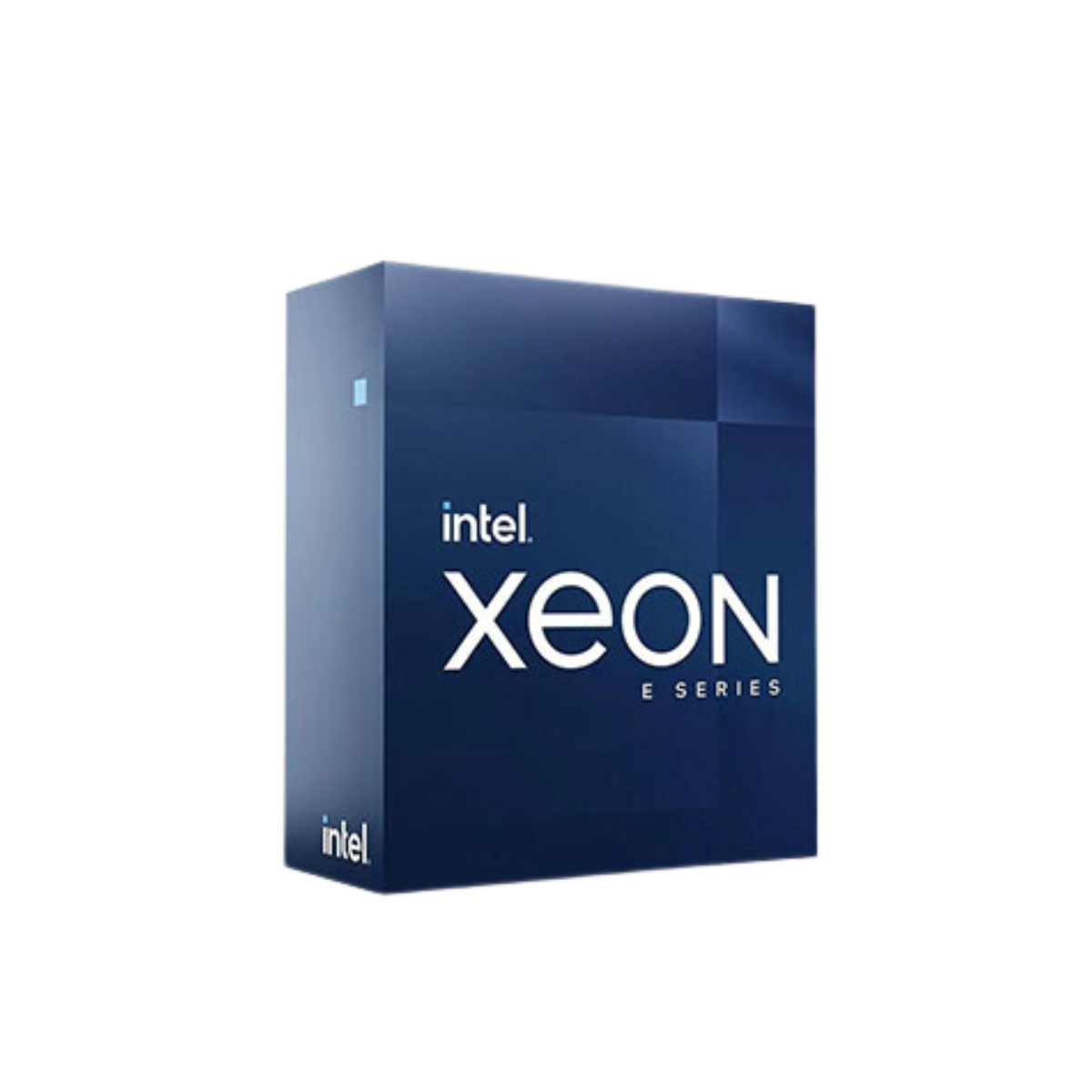

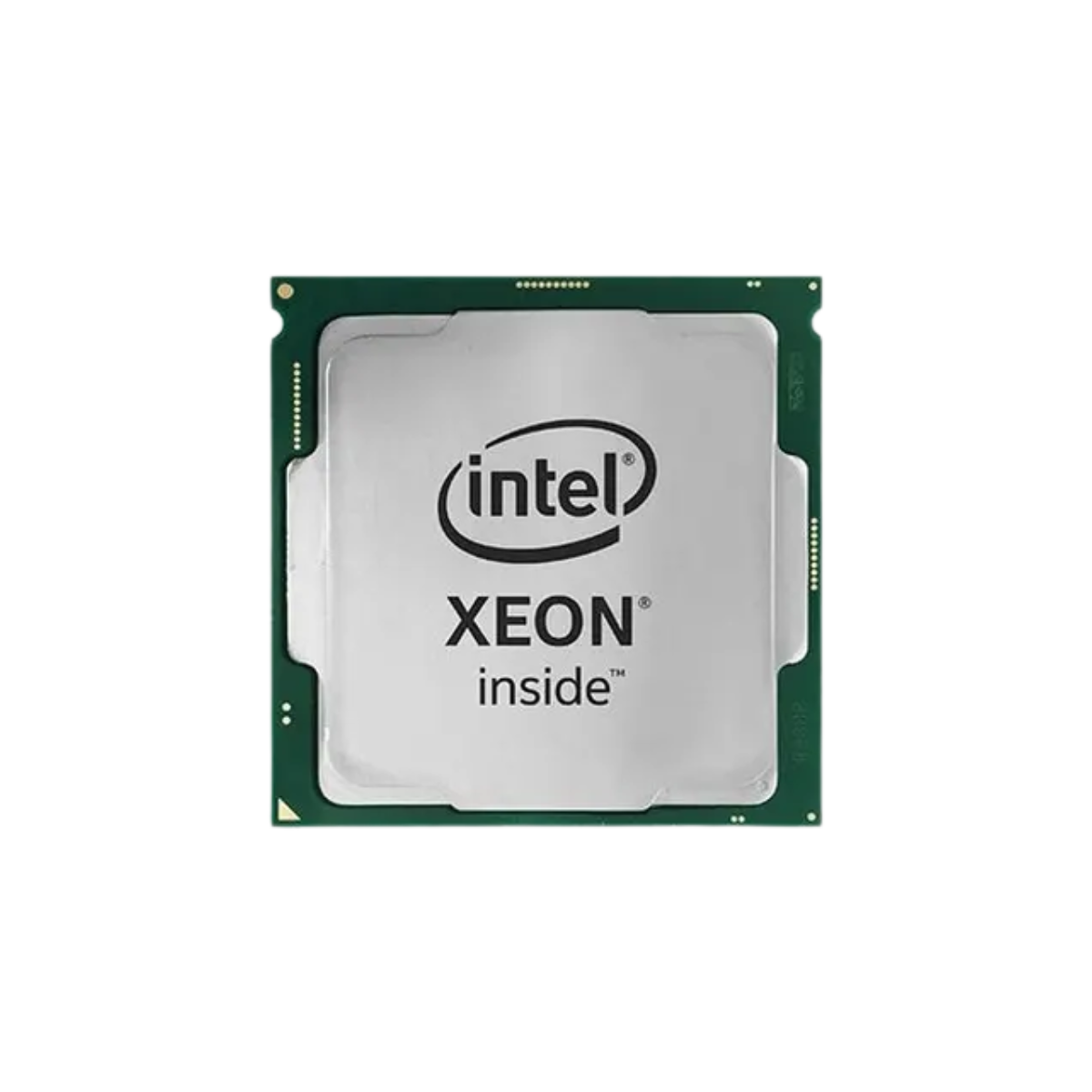

The Intel Xeon 6353P is an 8‑core, 16‑thread Intel Xeon 6‑series server processor based on the Raptor Lake architecture and manufactured on the Intel 7 (10 nm class) process for single‑socket FCLGA1700 systems. It runs at a 2.70 GHz base frequency with Intel Turbo Boost up to 5.40 GHz, has 24 MB of shared L3 cache, a 16 GT/s bus, and a 65 W TDP, delivering high per‑core performance with efficient power usage for compact servers and edge deployments.
For memory and expansion, the Xeon 6353P supports up to 128 GB of DDR5‑4800 ECC memory (and DDR4‑3200 in some boards) across 2 channels and provides up to 20 PCIe 5.0 lanes (configurable as up to 1×16+1×4 or 2×8+1×4), enabling high‑speed NVMe storage and modern NICs or accelerators in 1S servers. It includes Intel Hyper‑Threading, Turbo Boost 2.0 and Max 3.0, and a full suite of security and virtualization features—Intel VT‑x, VT‑d, EPT, Total Memory Encryption, AES‑NI, OS Guard, TXT, Boot Guard, and MBEC—making it well‑suited for small to mid‑size virtualized environments, real‑time analytics, microservices, and line‑of‑business applications that benefit from fast cores and modern I/O on a 65 W platform.
